The droid that outlived its app

A graphing calculator, an ESP32, and a toy nobody can switch on any more

← Casio calculator data logger – project overview

Hasbro's Smart R2-D2 was sold in 2016 with an Android app that controlled it over Bluetooth. Modern phones will not install it, so the toy has lost a lot of its playability - until now!

Nothing is wrong with the robot. It still advertises itself over Bluetooth LE to anything that knows how to ask. What died was the software, and with it every one of these toys still sitting in a cupboard.

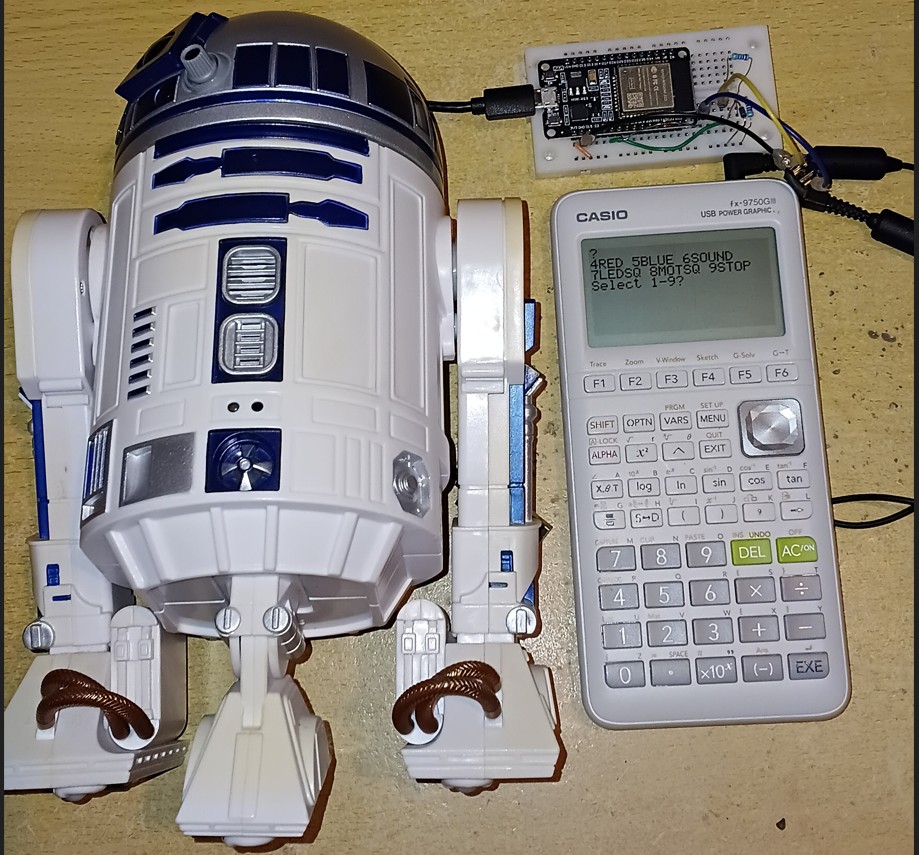

This project puts a Casio FX-9750 graphing calculator in charge of it, through the same 2.5 mm serial port and the same four-component interface circuit as every other build in this family. It then adds DroidX, a block-coding web page served by the ESP32 itself, so a phone or tablet can drive the droid with no app, no install, and no internet connection.

Restore phone control of your Hasbro Smart R2D2 The Casio remains a teaching tool connecting to R2D2 AT THE SAME TIME as the ESP32 serves an app to your phone, tablet or laptop webbrowser.

The calculator sends the commands. The ESP32 translates them into Bluetooth. The droid moves. And the calculator screen shows what the droid is actually doing, read back from the robot rather than assumed.

Why bother

This is an e-waste problem wearing a toy costume. A working machine is unusable because a company stopped maintaining a phone app, and no amount of care by the owner can fix that. Learners meet planned and unplanned obsolescence in a concrete example; here it is a robot on the table that will not move. But there is a route to making it move again at low cost.

This project is also the first endpoint in my Casio calculator research project that talks back. Simple sensors used in data logging do not disagree with commands. However, a droid reports its own head position, its own cam position, its button, and a forward proximity reading, so a learner can compare what was commanded with what actually happened. That gap is where the science is. Get the block coding ability back is where the fun is!

What was built

The wiring and the interface are identical to the ESP32 build guide. If you have built the data logger, you have already built the hardware for this.

What the calculator does

Commands go out in the two-step form used throughout this project: send the parameter number, then send its value. The calculator can only send a bare number, so the label goes first and is remembered. That is also, as it happens, exactly the shape of the droid's own protocol, which is an opcode followed by a payload.

Telemetry comes back the other way as three numbers, one per Receive(): the forward infrared reading, the age of the last app-mode hold packet, and the head position the droid reports for itself. The first and third are captured together, so although they are transmitted one at a time they describe the same instant – which matters when the thing being measured is driving across the floor.

A dropped Bluetooth link – a flat battery, a droid carried out of range, a power switch – is invisible from the calculator: the machine would go on accepting keypresses and go on being acknowledged by a board with nothing on the other end. So the values carry the news themselves. Anything unavailable reads -999, which is not a plausible measurement of any of them, and when the droid goes they all go together. A value that cannot be a real reading is proof of a fault. A fault must never resemble a result.

What the droid taught the Casio calculator research project

The other Casio calculator-to-microcontroller projects are indifferent to how long the microcontroller sat waiting inside the calculator's Receive(. A heater does not care. A thermistor never notices that it has been ignored.

A Bluetooth droid notices. It expects a small packet every couple of seconds, and it is the first endpoint in this work whose clock keeps running while the calculator is thinking. An unbounded wait starves it.

The fix is structural: that periodic packet must live outside the transaction loop, on its own task, firing whether or not the application is blocked. Once it does, the calculator's transaction time stops being a constraint.

And the failure of the 'Keep Alive' packet is quieter than the name suggests. Nothing dies...the published work calls that packet a keepalive. Measured on the bench, it is nothing of the kind. Starve it and the droid does not disconnect; the link stays up, the telemetry keeps arriving, the commands keep being obeyed. What lapses is the droid's agreement to stay out of the way of user control commands. The droid picks a mode for itself and starts performing while still answering everything you ask it. A fault that leaves everything apparently working is harder to find than one that disconnects, which is the whole argument for the Casio caclulator as a diagnostic instrument.

This generalises well beyond one toy. Any endpoint that expects to hear from its controller on a schedule has the same shape – Bluetooth, MQTT, anything session-based – and what it withdraws when it stops hearing might not be the connection.

What the bench established

Two numbers this build depends on came from elsewhere: the interval the droid needs between packets, taken from the published controller, and a pause inside the calculator's read window inherited from an older program of a different shape. Both are settable from a small serial console while the controller runs, so both could be measured.

The droid's timeout is 5.0 seconds

Nothing disconnects at any setting, telemetry keeps arriving, and commands are obeyed throughout. The edge is a step rather than a fuzzy region, because the droid's timer is reset by each packet.

The packet also stops what has already begun. At 5100 ms the droid starts a routine and is cut off mid-flash when the next one lands.

If you are building one of these: anything at or below 5000 ms is safe, and there is nothing to gain by going far below. This build sends one every 1500 ms.

What the 'keep alive' packet buys

Suppressed entirely, with the routine input-state request still going out every three seconds, the droid takes over anyway – so ordinary traffic will not stand in for it. Commands are still accepted while it does.

The packet does not buy control. It buys sole occupancy.

The command channel and the claim to be driving are independent of each other. Losing the claim does not take the droid away from you – it stops the droid being yours alone. This build already ran two control surfaces at once, the calculator and DroidX, neither aware of the other. A lapsed claim adds an uninvited third, and the third one is the droid.

Which is why nothing shows. Link up, values true, commands obeyed, every transaction counter at zero. There is no symptom to find, because nothing has failed in any sense the apparatus can test for. The only evidence is how long it has been since the last packet.

The telemetry pause can be zero

Measured on an FX-9750G Plus and found to be doing nothing: removing it takes the cycle from 2736 ms to 1539 ms, with no error of any kind at any setting including zero.

The pause stays in the build as a teaching control: set it back to 1200 ms and the long wait reappears on demand, which is how the finding above is shown to a class.

Three smaller results

• The finding holds on both calculator generations. An FX-9750G Plus and an FX-9750GIII, machines twenty years apart, on one interface circuit and one calculator program.
• Adding WiFi costs the Bluetooth link nothing measurable. The two share one radio in an ESP32, so this was measured rather than assumed: 2685 ms per cycle with the access point alone, 2682 ms with the access point, the web server, the WebSocket and two background tasks all running.
• The infrared consistency check held over roughly 571 frames with zero failures, checked in firmware on every frame.

A bench note. The droid switches itself off after about ten minutes IF THE CONNECTION IS LOST, sooner as the batteries fail. It is worth checking the droid is still awake before believing a drop.

The droid narrates its state the whole time

None of the measurements above would have been possible without a channel the published work documents and then treats as noise. Three opcodes – 0x60, 0x61 and 0x62 – carry ordinary null-terminated text: debug, log and error. The reference parser lists them and prints them only in verbose mode, among everything else too dull to read.

They are not dull. This is the droid describing its own internal state in English:

The second and third lines are where the droid announces that it has taken itself off app control. Not on 0x50, which is where the published enumeration of droid-to-app messages would lead you to look. It is in a debug string, in plain English, on a channel the tooling filters out by default.

Nothing here is an error in the published work – those opcodes are listed and the strings are printed. The difference is only in what one does with them, which is why it sits apart from the list below. But it is the part worth passing on: the machine describes its own state in words, and the standard tooling classifies the words as noise.

One of those lines is still unexplained. Queue overflow! appears without an obvious trigger, and nothing here should be read as knowing what it means.

Three things the published protocol work does not tell you

The droid's Bluetooth protocol was reverse-engineered by a third party from the decompiled Android app and published openly. That work made this project possible and is not mine. Building against code for Andoid APK use on ESP32 microcontroller hardware revealed three things worth passing back.

None of this is a complaint about the original work, which is careful and generous and without which none of this would exist.

The toy computes the proximity value, and the published parser discards it

The infrared packet carries three 16-bit values. The published parser reads two of them, ambient and lit, and ignores the first. Across 17 frames from four captures and three connections, the discarded field is exactly 4095 − (lit − ambient), every time. It is the toy's own computed proximity, inverted against 12-bit full scale. It carries no new information, but it is a free per-frame consistency check on the packet, and nobody is reading it.

The reported head position is mislabelled

The published parser applies the command enumeration to the reported field. Measured by commanding each position and reading back the code the droid reports for itself, all three labels are wrong, and a fourth code exists for a head still in transit between positions. Every value the parser returns is a legal enumeration member, so nothing signals that anything is amiss – a wrong answer wearing the shape of a right one. This build translates the reported codes back into the commanded convention, so a learner who types 1 reads 1.

The packet called a keepalive is not one

The published work sends 0x50 0x8D every two seconds and calls it a keepalive, which suggests that the droid drops its Bluetooth connection without it. Stretching the interval on the bench shows otherwise. It is an app-mode hold – a standing claim that an application is driving, which the droid honours by suspending its own behaviour for as long as the claim keeps arriving. Let it lapse and the droid concludes nobody is at the controls and starts entertaining itself, without dropping anything.

The name matters: "Keepalive" tells you to watch for a disconnection. The thing to watch for is a droid that carries on answering, reporting and obeying while quietly ignoring what it was told. This build calls it a hold throughout, and the calculator labels that reading HOLD AGE.

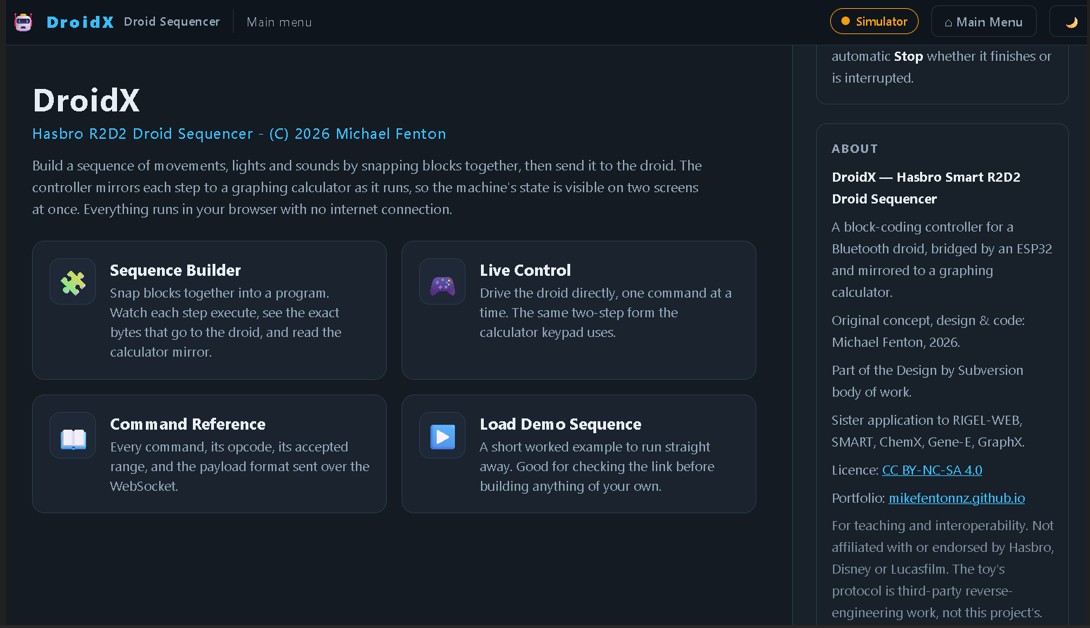

DroidX – the Hasbro R2D2 app you are looking for

The calculator is the interesting control surface, but it is not the only one. Because the ESP32 has WiFi, it can run as its own access point and serve a page. A phone will not find the Hasbro R2D2 droid in its Bluetooth list, but it will find the ESP32 in its WiFi list. Join it, open a browser, and the controller appears.

DroidX is that page: snap blocks together into a sequence, press Run, and watch the droid execute it while the calculator mirrors each step. There is no app to install, no store, no account, and no internet connection anywhere in the chain.

[ Phone / tablet browser ]  --WiFi WebSocket-->  [ ESP32 ]  --serial-->  [ Casio screen ]
        DroidX block UI                              |
                                                     +--Bluetooth LE-->  [ droid ]

The whole page is about 11 kB compressed and holds its own block editor, so it lives inside the firmware as a single string with no filesystem to keep in step. It also runs standalone in any browser with the controller absent, saying so plainly in its toolbar, which means a class can build and check sequences without a droid each.

Every sequence ends with a stop, whether it finishes or is interrupted. The drive motor latches on, and a sequence that ended without one would leave the droid driving.

Command set

Every value is range-checked before it is acted on, and a rejection is counted and raised on the calculator rather than silently ignored. Power-down is deliberately absent from the menu – a typing error should not end the lesson.

One motor, and a cam that chooses what it drives

The droid is not a two-motor robot. It has one drive motor and a cam that selects among eight positions: head, drive, pivot left, pivot right and their upright variants. So the head cannot turn until the cam has moved to a head position, and a head command quietly moves the cam first. Nothing in the published protocol work documents this. It fell out of watching the reported cam position change in response to a head command.

That constraint is worth having in a classroom. There is no proportional steering and no odometry, so a learner navigating this robot has eight discrete states and has to think about sequence rather than about joystick angles.

Use it

Obsolescence, made concrete. Start with the toy that will not switch on. Ask why. The answer is not mechanical and not electrical; it is a 32-bit library in a file nobody will rebuild. Then fix it anyway.

Commanded against actual. The droid reports where its head really is. Have learners predict, command, then read back, and find the cases where the two disagree – a head still in transit, a cam that had to move first, a command that arrived while the link was down.

Proximity and distance. The forward infrared sensor reports ambient and reflected light separately. Drive the droid towards a wall, log the reflected signal against time with the existing Casio interval logger, and the result is a genuine investigation rather than a demonstration.

Sequencing without a screen full of syntax. DroidX gives block coding to learners who are not ready to type, on hardware they can watch, with the executing step visible on a second screen.

Code, manual and the other platforms

• Repository, all platforms: github.com/MikeFentonNZ/Casio-calculator-datalogger-picaxe-esp-microbit-arduino
• Technical manual – wiring, the full Receive( sequence, every packet and checksum: https://doi.org/10.5281/zenodo.22095227
• Priority disclosure – the timing discoveries, the encoding invention and the operational modes: https://doi.org/10.5281/zenodo.19303911
• The 2008 origin – Ministry of Education E-Learning Fellowship report, which first put the calculator in charge of a robot: https://doi.org/10.5281/zenodo.19302276
• The droid's Bluetooth protocol, reverse-engineered and published by a third party: github.com/elitistphoenix/r2d2-robot-apps

Other platform build guides: PICAXE · BBC micro:bit · ESP8266 · ESP32 · Arduino Uno

B9 robot mobile science lab – Lost in Space

Not affiliated

This is a preservation, education and interoperability project. It is not affiliated with or endorsed by Hasbro, Disney or Lucasfilm, and the toy, its name and its likeness remain the property of their respective owners. The droid's Bluetooth protocol is third-party reverse-engineering work, credited above, and is not mine. No original manufacturer code or assets are redistributed here.
